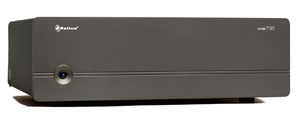

Products: Amplifiers: The Model 7125

A moderate price never had such a reward. The Model 7125 delivers 7 channels at 125 Watts each, allowing playback of the most recent sound formats without breaking the bank. The Model 7125 is based on the same system architecture and topology as our Model 755 and 770 amplifiers. The power stages are virtually the same and the sound is everything you have come to expect from Outlaw.

About/Gallery

Manual

Reviews

DISCONTINUED

Protect your system with Surgex!

Specifications

Power Output: 7 x 125 watts RMS at 8 ohms, all channels driven from 20 Hz to 20kHz with less than 0.05% THD 7 x 190 watts RMS at 4 ohms, all channels driven from 20 Hz to 20kHz with less than 0.05% THD

Signal to Noise: 119dB "A" weighted

Frequency Response: 20Hz. -20kHz. +/- 0.1 dB at rated output

Total Harmonic Distortion: < 0.05% at rated output, all frequencies, 0.01% at 1 kHz.

Intermodulation Distortion: < 0.05% at rated output.

Power Bandwidth: 5 Hz - >125kHz +0/-3 dB

Damping Factor: Greater than 400 from 10 Hz to 400 Hz

Crosstalk: Greater than -90 dB from 20 Hz to 20Khz

Gain: Voltage gain of 28 dB

Slew Rate: 50v/uSec

Input Impedance: Nominal 50k ohms

Input Sensitivity: 1.00 Volts for Full Rated Output

Remote Trigger Voltage: 3 - 32 Volts DC at 5 milliamperes or greater

Dimensions: (HxWxD): 6" with feet x 17.25" x 16"

Weight: 51 lbs

Power Requirements: 115VAC, +/- 3%, 50Hz - 60 Hz. 1440 watts, maximum
