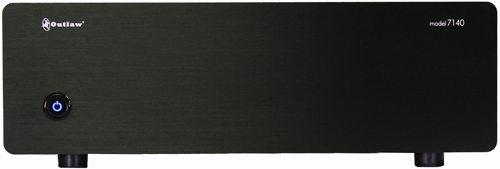

Tried and true Class AB amplification has been at the heart of every Outlaw multi-channel amplifier for almost 20 years. With the Model 7140, we've managed to increase the power, improve the performance, and provide even greater reliability, all in the same chassis size as our previous Model 7125. With RCAs and XLRs (utilizing a balanced input stage), this amplifier offers high performance at an affordable price.

About/Gallery

Quick Start Guide

Discontinued

Protect your system with Surgex!

Specifications

Power Output: 140 watts RMS x 7 All Channels Driven simultaneously into 8 ohms from 20Hz to 20 kHz with @ 0.05% THD.
225 watts RMS into 4 ohms @ 0.05% THD

Signal to Noise: >120dB "A" weighted

Frequency Response: 20Hz. -20kHz. +/- 0.1 dB at rated output

Intermodulation Distortion: < 0.05% at rated output.

Power Bandwidth: 5 Hz - >125kHz +0/-3 dB

Damping Factor: Greater than 400 from 10 Hz to 400 Hz

Crosstalk: Greater than -90 dB from 20 Hz to 20Khz

Gain: Voltage gain of 29 dB

Slew Rate: 50v/uSec

Input Impedance: Nominal 50k ohms

Input Sensitivity: 1.2 Volts for Full Rated Output

Remote Trigger Voltage: 3 - 32 Volts DC at 5 milliamperes or greater

Dimensions: (HxWxD): 6” including feet x 17.25” x 16”

Weight: 53.55 lbs

Power Requirements: 120VAC, +/- 3%, 50Hz - 60Hz 1440 watts, maximum
