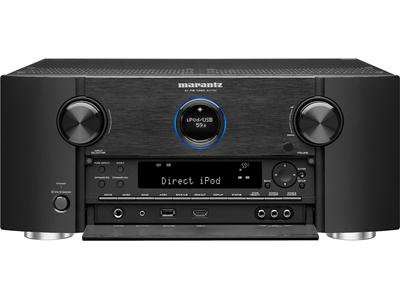

Introducing The Marantz AV7701!

*Click on image to zoom in new window.

Click here for a large rear panel view in new window.

An ideal connectivity solution for any home theater system, the Marantz AV7701 A/V 7.2 Channel Preamplifier helps you make the most of Blu-ray players, turntables, and other entertainment devices. When paired with an amplifier, this preamp delivers immersive and faithful surround sound performance across 7.2 channels. It also features 4K upscaling and pass-through, so you can enjoy the latest HD video content to the fullest.

• Number of Channels: 7.2 Channels

• Audyssey: Audyssey MultEQXT, DSX, Dynamic EQ, Dynamic Volume

• DTS: DTS HD Master Audio, HD High Resolution, ES Discrete/Matrix, Neo:6, 96/24

• Dolby: Dolby TrueHD, Digital, Digital Plus, Pro Logic IIz, EX

• DSD(SA-CD): Yes

• Current Feedback Topology: Preamplifier Stage

• Power Transformer: EI Core

• D/A Conversion: 192kHz/24-Bit

• Digital Signal Processing: Analog Devices ADSP21487

• Video Off (Pure Direct): Yes

• Source Direct: Yes

• Chassis: Full Size

• Variable X-over: Yes

• Auto Calibration by MIC: Audyssey MultEQXT

• FM Tuner Only

• Bass Management: Yes

• Lip-sync (digital audio delay): Yes

• Software Upgradable: Yes (via Internet)

• HDMI In: 7 (including front HDMI input)

• Component In: 3

• Composite In: 4

• HDMI Out: 3 (2 x Simultaneous, 1 x Zone 2)

• Component Out: 1

• Composite Out: 2

• Analog L&R In: 6

• Analog L&R Out: 1

• Digital Optical In: 2

• Digital Coaxial In: 2

• Pre-Amplifier Out: 7.2

• Multi-Channel In: 7.1

• Multi-Room Audio Out: Zone 2 & Zone 3 Preout (Variable)

• Multi-Room Video Out: Zone 2 HDMI, Component (Assignable) and Composite

• Multi-Room Speaker Out: Yes (Selectable)

• Networking: AirPlay, DLNA 1.5 certified Audio/Photo Streaming, Internet Radio, Streaming service capability (Pandora/SiriusXM/flickr and Spotify)

• SetUp Wizard: Yes (Setup Assistant)

• External control: RS-232C / IP

• DC Triggers: 2

• D-Bus Remote (RC-5) In/Out: Yes

• Flasher In: 1

• Front Panel A/V Inputs: Front HDMI, USB and A/V inputs

• Headphone Out: 1

Owner's Manual

Specifications Sheet

Reviews

Specifications: Click here for full specification sheet.

Analog Audio Section

• S/N Ratio: 105dB

•Freq. Response: (Analog In) 10Hz - 100kHz (+/- 3 dB)

Tuner Section FM

• Frequency Range: 87.5 - 107.9MHz

• S/N Ratio (Mono/Stereo): 78/68 dB, HD: 85dB

Video Section

• Video Freq. Response (Component): 5Hz - 60MHz

• Video Freq. Response (Composite, S-Video): 5Hz - 10MHz

General

• Color: Black

• Front Panel Aluminum / Glass-resinforced resin

• Remote Control: Backlit, LCD, Learning, Pre-code System Remote Controller

• Power Requirement: AC120V 60Hz

• Dimensions W x H x D (Inchs): 17.32" x 7.36" x 15.98"

• Weight (lbs): 21.6 lbs
