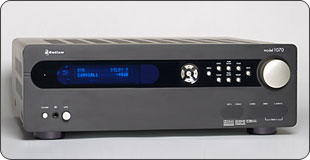

Amplifier Section

Output Power (FTC): 65 watts per channel, 8 ohms, 20 Hz - 20kHz,<0.08%THD, all channels driven

80 watts per channel, 6 ohms, 1 kHz, <0.08% THD

Analog Section

Input Impedance 26Kohms

Output Impedance (Main-RCA)<600Ohms

Pre Out 1V

Maximum Output 6.0V

Volume Range (Main) -70dB to +10.0dB (.5dB resolution)

Bass Management

High-Pass Slope Crossover Frequency

(Small Speaker Setting) (Adjustable 40/60/80/100/120/150Hz)

12 dB/octave (2nd order)

Low-Pass Slope (Subwoofer) 24 dB/octave (4th order), 40-150Hz as above

Tone Control

Bass Center Frequency/Range 30Hz ± 6dB

Treble Center Frequency/Range 10KHz ± 6db

Frequency Response

Line 10Hz to 100kHz ± 1dB

S/N Ratio (IHF-A) 100dB

IMD (CCIF at 15kHz & 1 kHz) 0.03%

FM Tuner Section

Sensitivity

IHF 10dBu typ.

50dB S/N 13dBu typ.

S/N Ratio

Mono 70dB

Stereo 67dB

Distortion

Mono 0.2%

Stereo 0.3%

Stereo Separation 40dB typ.

Adjacent Channel Selectivity 70dB +/- 400kHz

IF Rejection Ratio 120dB

Frequency Response 20 Hz to 15 kHz ± 1.5dB

AM Tuner Section

Sensitivity (20dB S/N) 200uV

S/N 50dB

Selectivity 25dB

Distortion 0.7%

Video Section (NTSC Format)

Bandwidth

Composite & S-Video 6 MHz –3dB

Component >100MHz

Input Sensitivity @ 75 ohms;

Composite & S-Video 1.0Vp-p

Component R-Y Signal 1.0Vp-p

Component B-Y Signal 1.0Vp-p

Component Y Signal 1.0Vp-p

Digital Audio

All digital audio inputs and outputs are to S/PDIF electrical (75 ohms , 0.5Vp-p),

S/PDIF optical (Toslink), or AES / EBU (110 ohms , 5Vp-p) standards as appropriate.

Processor CS49400

General

Supply Voltage 120V, 60Hz only

Power Consumption

Standby Power Off : 1.9W

Standby Power On : 37W

7 CH Load @ 65W Output Power : 855W

Trigger Output Sequential Delay 50 mA @ 12 VDC

Dimensions

(HxWxD) 5.9”x17.2”x15.5”

Weight 40 lbs.
