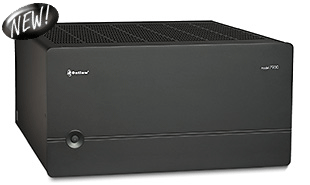

So powerful that it needs dual 15A breakers, this state-of-the-art behemoth takes no prisoners when it comes to turning your favorite soundtracks into life-changing experiences. This all new fully balanced power amplifier uses 24 output transistors per channel to deliver an astounding 7x300 watts per channel, all channnels driven! Our most advanced design ever.

About/Gallery

Manual

Reviews

Specifications

Power output: 300 watts RMS x 7 (all channels driven simultaneously into 8 ohms from 20 Hz to 20 kHz with less than 0.05% total harmonic distortion).

Signal to Noise: >120dB below rated FTCfull bandwidth power

Power Bandwidth: 5 Hz - over 100 kHz (+0/-3 dB)

Crosstalk: Greater than -100 dB from 20 Hz to 20 KHz

Intermodulation Distortion: Less than .02% from 250mV to full rated FTC power

Voltage gain: XLR 28dB, RCA 28dB.

Slew rate: 50 Volts/microsecond

Remote Trigger voltage: 3 - 24 volts DC

Power requirements: 2x 115 V 50-60 Hz

Power consumption: 2x 1,440 watts (maximum)

Dimensions (W x H x D): 17.2 x 9.5 with feet x 19.5 (inches)

Weight: 145 (lbs)
